90KW Horizontal ring die Wood Sawdust Biomass Pellets Making Machine

Model Number : SZLH420

Certification : CE, ISO

MOQ : 1 SET

Price : USD20000-25000 per SET

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 sets per momth

Delivery Time : 15-20 days after receive down payment

Packaging Details : very stable iron case

Main motor power : 90KW

Feeder motor : 3KW

Forced feeder motor : 0.75KW

Brand of the motor : Siemens Beide brand

Brand of bearings : NSK

Inner diameter of the ring die : 420mm

Materials of ring die : X46Cr13

Capacity : 1T/H

Contact Now

90KW horizontal ring die wood pellet machine:

Design of the ring die wood pellet machine: horizontal ring die

This machine adopts a system of conversion speed-adjustable feeding and axial steam spraying, and a cleaning method of “LL” conditioner big opening, and also systems of external discharging, strong magnetic safety and overload protection, additionally, clamp type die, fully imported bearings in gearbox and power transmission through S-shaped spring coupling.

Advantage of our ring die wood pellet machine:

1. This machine has the features of compact structure, fine appearance, convenient installation, operation and maintenance, and reliable performance.

2. Dies of various hole diameter such asφ6,φ8,φ10 are available . Customers can order dies of different holes diameters according to the production needs.

3. This machine mainly consists of two parts, feeding and conditioning system and main driving and pellet system.

Parameters of wood pellet machine with Automatic lubrication and dust collecting system:

Model No. of the machine	SZLH420
Capacity	1.0T/H
Power of main motor	90KW
Power of feeder motor	3KW
Power of forced feeder motor	0.75KW
Voltage of the motor	380V/3 phase/50hz
Brand of motors	Siemens Beide brand
Brand of bearings	NSK
Inner diameter of the ring die	420mm
Materials of ring die	X46Cr13
Service life of the ring die	800~1500 hours
Quantity of the roller wheels	2 pcs
Materials of pressing roller	40Cr
Service life of the pressing roller	≥ 800 hours
Moisture content of the input raw materials	12%~15%

90KW Horizontal ring die Wood Sawdust Biomass Pellets Making Machine

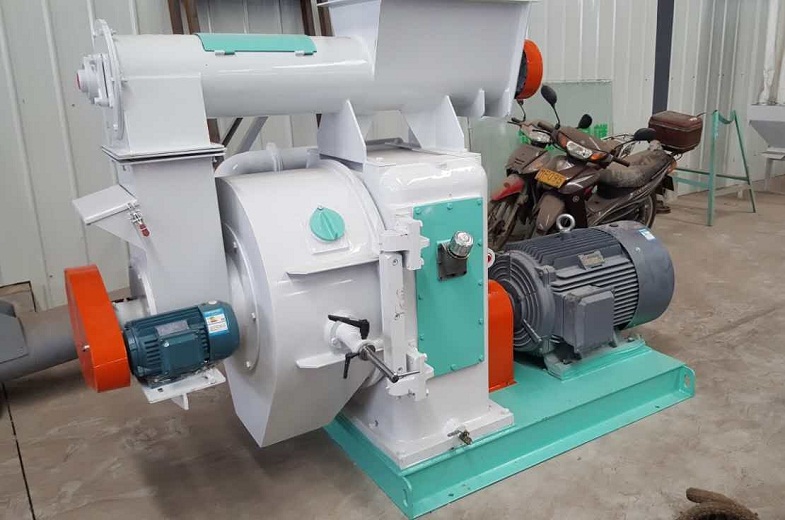

90KW Horizontal ring die Wood Sawdust Biomass Pellets Making Machine Images
